Four Scissior Lift Table
10500 INR/Unit
Product Details:
- Weight 475-2500 Kilograms (kg)
- Product Type Four Scissior Lift Table
- Condition New
- Feature High quality power unit from Europe
- Attributes Durable
- Click to View more
X
Four Scissior Lift Table Price And Quantity
- 10500 INR/Unit
- 1 Unit
Four Scissior Lift Table Product Specifications
- 475-2500 Kilograms (kg)
- New
- High quality power unit from Europe
- Durable
- Four Scissior Lift Table
Four Scissior Lift Table Trade Information
- Telegraphic Transfer (T/T)
- 1 Unit Per Day
- 1 Days
- All India
Product Description

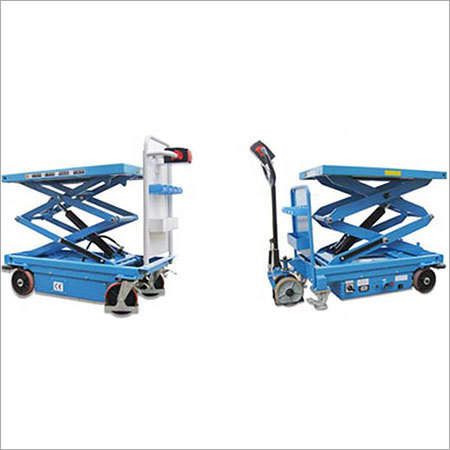

Four Scissior Lift Table
Features
- Heavy duty design.
- High quality power unit from Europe.
- Conforms to En1570 and ANSI/ASME safety standard.
- Safety clearance between scissors to prevent from trapping.
- Installed aluminum safety bar to prevent from trapping while descending.
- Built-in relied valve and compensation flow control valve to fulfill overload protection and control lowering speed.
- There is safety valve to stop the table or keep slow descending in case of hose burst.
- Self-lubricating bushing in all pivot points to prolong the lifespan.
Specifications of the product
| Model | HF400 | HF800 | HF1600 | HT4000 | HD5000 | HW6001 |
| Capacity (kg) | 400 | 800 | 1600 | 400 | 5000 | 6000 |
| Platform size(mm) | 1700×1000 | 1700×1000 | 1700×1200 | 1700×1200 | 2980×2000 | 1700×1000 |
| Base size (mm) | 1600×1000 | 1606×1010 | 1610×1140 | 1610×1140 | 2965×1730 | 1600×990 |
| Min. Height(mm) | 600 | 706 | 800 | 625 | 890 | 380 |
| Max. Height(mm) | 4140 | 4210 | 4250 | 3200 | 5100 | 1150 |
| Raising time(S) | 30-40 | 65~75 | 50~65 | 50~65 | 90~105 | 25~35 |
| Descending time(S) | 30-40 | 75-85 | 70~85 | 70~85 | 120~135 | 35~45 |
| Power Pack | AC380V, 2.2KW | AC380V, 2.2KW | AC380V, 4KW | AC380V, 3KW | AC380V, 2.2KW | AC380V, 4KW |
| Net weight(kg) | 550 | 860 | 1045 | 910 | 2500 | 475 |
