Straddle Electrical Stacker
Product Details:
- Usage For Lifting
- Product Type Stacker
- Body Material Metal
- Type Straddle Electrical
- Click to View more
Straddle Electrical Stacker Price And Quantity
- 1 Unit
- 30100 INR/Unit
Straddle Electrical Stacker Product Specifications
- Stacker
- Straddle Electrical
- Metal
- For Lifting
Straddle Electrical Stacker Trade Information
- Telegraphic Transfer (T/T)
- 1 Unit Per Day
- 1 Days
- All India
Product Description
Straddle Electrical Stacker
Specifications of the product
| Characteristics | ||||
| 1.2 | Model designation |
| YES14-30WA | YES18-40WA |
| 1.3 | Drive unit |
| Battery | Battery |
| 1.4 | Operator type |
| Walkie | Walkie |
| 1.5 | Load capacity | Q (kg) | 1400 | 1800 |
| Weights | ||||
| 2.1 | Service weight (Incl. battery) | kg | 990 | 1050 |
| Wheels, Chassis | ||||
| 3.1 | Tyre type |
| PU/ PU | PU/ PU |
| 3.5 | Wheels, number operator/load side |
| 1x+2/ 4 | 1x+2/ 4 |
| Dimensions | ||||
| 4.2 | Height, mast lowered | h1 (mm) | 1828/2108/2303 | 1828/2108/2303 |
| 4.3 | Free lift | h2 (mm) | 150 | 150 |
| 4.4 | Lift height | h3 (mm) | 2600/3160/3550 | 2600/3160/3550 |
| 4.5 | Height, mast extended | h4 (mm) | 3565/4125/4515 | 3565/4125/4515 |
| 4.10 | Height of straddle arms or load wheel casing | h8 (mm) | 100 | 100 |
| 4.15 | Fork height, lowered | h13 (mm) | 50~75 | 55~80 |
| 4.19 | Overall length | L1 (mm) | 1966 | 2071 |
| 4.21 | Overall width | b1/ b2 (mm) | 1270-1470 | 1270 1370 1470 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 40/ 100/ 1067 | 45/ 100/ 1067 |
| 4.25 | Outside fork width, minimum/ maximum | b5 (mm) | 254-780 | 254-780 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2157 | 2262 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2197 | 2402 |
| 4.35 | Outer turning radius | Wa (mm) | 1545 | 1645 |
| Performance | ||||
| 5.1 | Travel speed, laden/ unladen | km/ h | 5.5/ 6.0 | 4.5/ 5.0 |
| 5.8 | Maximum gradeability, lad/ unload S2 5 min. | % | 6/10 | 6/10 |
| 5.10 | Service brake |
| Electromagnetic | Electromagnetic |
| Drive | ||||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.1 | 1.1 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 | 3 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/280 | 24/280 |
| 6.5 | Battery weight (with box) | kg | 200 | 200/484 |
| Others | ||||
| 8.1 | Type of drive control |
| ZAPI AC | ZAPI AC |

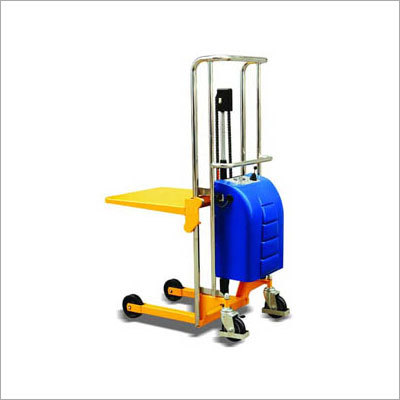

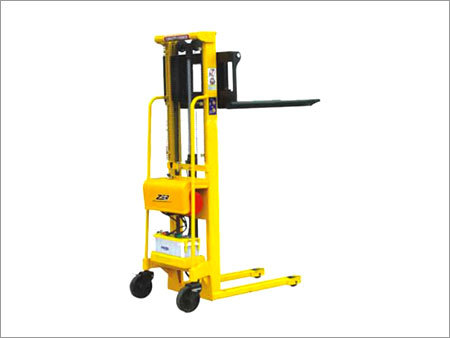

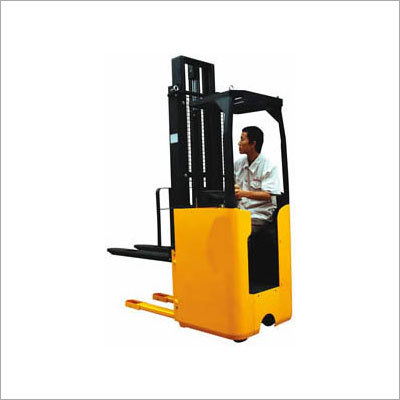

Other Products in 'Hydraulic Stackers' category
